custom sprockets & pulleys

In addition to WM Berg's engineered belts and chains, we also manufacture the pulleys and sprockets used in belt and chain drives. We can make simple bore modifications to our standard sprockets and pulleys, or help you design a completely one-of-a-kind product. Our custom sprockets and pulleys are available in imperial (inches) or metric (mm) and made in the USA.

Request for Quote

WM Berg offers custom sprockets and pulleys suitable for virtually all precision mechanical assembly requirements and operating conditions within the aerospace, healthcare and motion control industries. Our tailored original equipment manufacturer (OEM) parts include a wide array of sprocket and pulley types, diameter and bore sizes, hub styles, materials and pitch ranges to meet the criteria of any application, including those touching multiple points of manufacturing, processing, packaging and moving material or products.

Jump to: Custom sprocket options / Custom pulley options

custom precision sprockets and pulleys manufactured in USA

custom sprocket options

custom roller chain sprocket

Our patented custom sprocket configurations output varying degrees of torque from motors to equipment depending on application requirements. Customization options include length through bore, hub size, outside diameter, pitch diameter, tooth pitch and number of strands. Sprocket teeth can also be anodized. Pin or clamp hub assembly on request.

WM Berg sprocket types available for customization:

Chain Sprockets
Chain sprockets (roller chain sprockets) are the most common type of precision sprocket. They have teeth that interlock with the chain in a chain-and-sprocket drive to provide power transmission.

Row-L-ER Chain Sprockets
These roller chain sprockets are designed to work with Berg’s Row-L-ER® chains, which have the advantage of zero slippage and negligible stretch.

Belt Sprockets
Belt sprockets are designed to run with toothed belts (timing belts) in belt drive systems that require more power than a friction-drive belt, or in applications that benefit from layout flexibility.

3-D Sprockets
3-D sprockets are designed to work with Berg’s Min-E-Pitch® belts, which are zero backlash, quiet and provide three dimensional drive.

Double Sprockets
Double sprockets are designed to run in applications where two roller chain strands are powered by one drive shaft.

Idler Sprockets
Sprockets 19mm (0.75") pitch diameter and smaller are for idler use only.

Silent Chain Sprockets
Berg manufactures made-to-order silent chain sprockets compatible with our molded polyurethane Flex-E-Gear® and Min-E-Pitch® timing belts.

WM Berg’s drive shaft sprockets and bore sprockets can be customized to your specifications, with options including:

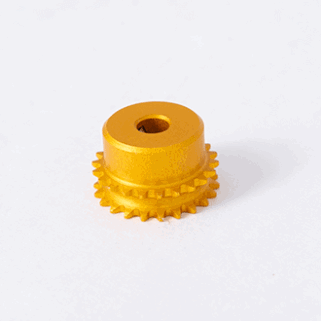

custom industrial sprocket

Customize sprockets by application

Custom sprockets are used in a variety of service environments to transmit mechanical power between rotating shafts spaced too far apart for gears. Common precision sprocket applications include:Custom sprockets are used in a variety of service environments to transmit mechanical power between rotating shafts spaced too far apart for gears. Common precision sprocket applications include:

  • Conveyor drives, turning rollers & other factory systems
  • Power transmission equipment with pulleys & shafts
  • Material handling equipment & robotic arms

Berg’s mechanical, application and design engineers consistently deliver innovative solutions ranging from engineered-to-order to print parts and assemblies. We can provide custom options for your most complex application needs.

Customize sprockets by material

WM  Berg manufactures custom metal and plastic sprockets in a variety of materials:

  • 303 Stainless Steel
  • 303 Stainless Steel with Teflon® bushings
  • 302 Stainless Steel (18-8)
  • 17-7PH Rockwell C38-C44
  • 17-4PH Rockwell C32-C38
  • 416 Stainless Steel
  • 410 Stainless Steel
  • 440 Stainless Steel
  • 420 Stainless Steel
  • 301 Stainless Steel
  • 304 Stainless Steel
  • 316 Stainless Steel
  • Mild Steel
  • 12L14 Steel
  • 4140 Steel
  • 1018 Steel
  • 1045 Steel
  • 8620 Steel
  • Polyacetal
  • Polyacetal with lubricant fibers
  • Polycarbonate
  • Glass filled-10% Black Polycarbonate
  • Delrin®
  • Cast Polyurethane Graphite
  • Nylatron®
  • Glass-filled Nylatron® GS-51
custom pulley

Custom pulley options

Our patented custom pulley and belt configurations generate varying levels of motion in a drive system depending on application requirements. Customization options include counterbores, length through bore, hub size, outside diameter, pitch diameter, keyways, setscrews and tooth pitch. Pulley teeth can also be anodized. Pin or clamp hub assembly on request.

WM Berg precision pulley types available for customization:

Timing Pulleys
Timing pulleys (timing belt pulleys) maintain accurate timing while drive systems are in operation by engaging the timing belt to prevent misalignment. Timing pulleys have teeth and pockets on the outside diameter and are commonly used to link two shafts in a synchronous drive so they rotate at precisely the same time. Berg can modify standard stock or manufacture completely custom timing belt pulleys to spec.

Grooved Pulleys
Grooved pulleys/cable pulleys are manufactured with varying types of belt grooves (A, B, C, D, E, H, K, L & many others) including multiple grooves. The advantage of multiple grooves is that you can switch the belt or cable to a different groove to modify rotation speed. WM Berg grooved pulleys are available in a clamp hub or pin hub style.

V-Belt Pulleys
V-belt pulleys (aka vee belt pulleys or vee belt sheaves) are a specific type of grooved pulley used with a V-belt to provide high-speed power transmission in a drive system. V-belt pulleys are ideal for applications requiring quiet operation and a high strength-to-weight ratio, but are not suitable for synchronized applications. WM Berg V-belt pulleys come in a pin hub single groove style.

Berg 60° V-belt pulleys for electric motors (aka V-groove pulleys) are compatible with our Pow-R-Vee® belts which offer higher heat resistance and have less inertia than standard belts.

Toothed Belt Pulleys
Berg manufacturers customizable toothed belt pulleys which have teeth on the outer surface designed to run over our Flex-E-Belt®, Flex-E-Grip® and Max-M-Drive® belts.

Ribbed Pulleys
Berg manufactures customizable ribbed pulleys which have grooved ribbing on the outer surface designed to fit our Flex-E-Grip® and Max-M-Drive® belts.

Friction Drive Rollers
Friction drive rollers and round belt pulleys are used with a belt or a belted chain to engage with a drive system using friction. Drive rollers are often used in conveyor systems and other industrial and commercial applications such as paper feeders, packaging machinery and plastic film extrusion. WM Berg friction drive rollers have a wheel made out of 303 stainless steel with a pin hub and a Buna-N elastomer compound tire.

Timing Pulley Bar Stock
WM Berg offers timing pulley bar stock in anodized aluminum, and can accommodate a wide range of pitches, teeth, OD and lengths. Custom timing pulley bar stock is available in imperial or metric sizes.

Additional custom pulley options include:

Customize pulleys by application

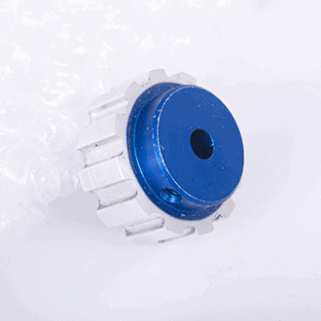

custom timing pulley

Custom industrial pulleys are used in a variety of service environments to transmit mechanical power between rotating shafts spaced too far for gears. Common applications include:

  • Conveyor drives
  • Counterweight systems
  • Wire & fiber manufacturing equipment
  • Many different types of electromechanical devices

Whether your application calls for an idler pulley, drive pulley, fixed pulley, moveable pulley, companion pulley, or electric motor pulley, Berg engineers can provide a custom solution designed for optimal performance and longer life cycles.

Customize pulleys by material

WM  Berg manufactures metal and plastic pulleys in a variety of materials:

  • 303 Stainless Steel
  • 302 Stainless Steel (18-8)
  • 17-7PH Rockwell C38-C44
  • 17-4PH Rockwell C32-C38
  • 416 Stainless Steel
  • 410 Stainless Steel
  • 440 Stainless Steel
  • 420 Stainless Steel
  • 301 Stainless Steel
  • 304 Stainless Steel
  • 316 Stainless Steel
  • 12L14 Steel
  • 4140 Steel
  • 1018 Steel
  • 1045 Steel
  • 8620 Steel
  • Die Cast Zinc Alloy
  • Polyacetal
  • Polyacetal with lubricant fibers
  • Polycarbonate
  • 10% Glass filled Black Polycarbonate (hub is aluminum)
  • Lexan®
  • Polycarbonate Lexan®

Benefits of working with wm berg

Our standard precision sprockets and pulleys can be customized to your application needs, saving time and money otherwise spent seeking/altering standard sprockets. Custom precision sprockets and pulleys can also extend the use of existing machinery and provide more flexibility to optimize mechanical operations as business needs evolve. Additional advantages include:

Our sprockets and pulleys have a long part life, exhibit low operational maintenance and help maximize equipment performance by ensuring high wear resistance, reliably transmitting rotational energy and minimizing downtime when changing torque or direction of motion.

Our Customization Process

For over 50 years, WM Berg has been the leader of premium precision sprocket and pulley engineering, production and manufacturing. That’s what makes us the go-to source for questions around spec requirements, application objectives and precision sprocket installation.

Working with a custom sprocket manufacturer has never been so easy. Our engineers, shipping team and technical support agents guide you through every step from concept and prototype through production and installation. Request a custom sprocket or pulley quote today, or contact our team with questions.
